VED

VED

Product Code: CRH-FCU-VED

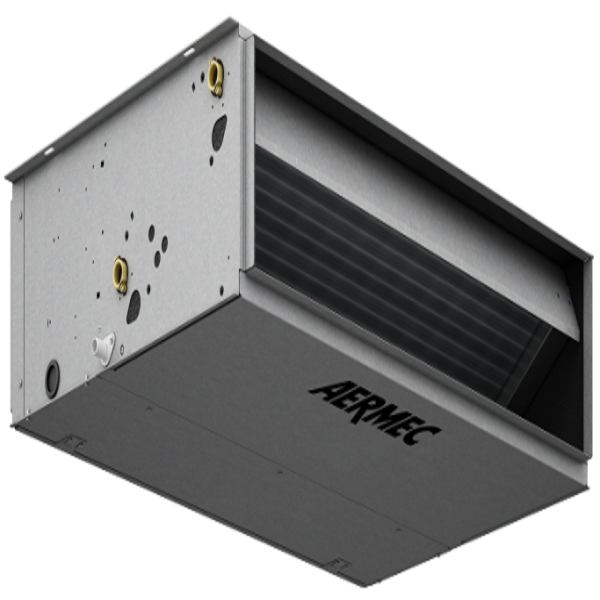

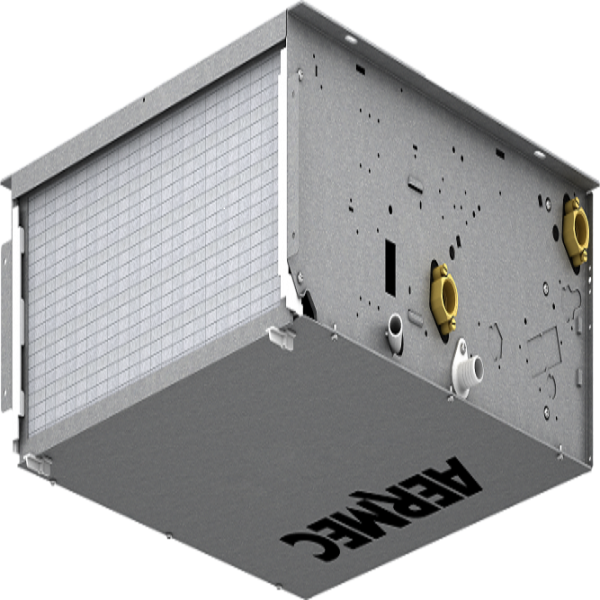

The wall/ceiling fan coils for air treatment of ducted systems, either on/off or inverter, for commercial or industrial use, can be matched with any heat generator.

Cooling Capacity: 0.99 – 18.00 kW

Heating Capacity: 4.00 – 25.00 kW

Installation: Ducted

Type: 2 Pipes / 4 Pipes

Fan: Double suction centrifugal fan

Optional: Network Operation / VMF System

The units of the VED series are fan coils which are suitable for air conditioning. Available in various versions, they can be installed either vertically or horizontally and come with multi-speed on/off motors or inverter motors. They have anti-static plastic centrifugal fans with an impeller equipped with inspectionable airfoil and scroll fins. This feature gives the machine a net reduction in the noise emission level, as well as a reduction in the motor's electrical consumption compared to traditional fans with a metal structure. The VED units come with a class G3 air filter as standard, and can also be equipped with multiple accessories and can be integrated into the centralised VMF - Aermec hydronic management system.
