FCZI

FCZI

Product Code: CRH-FCU-FCZI

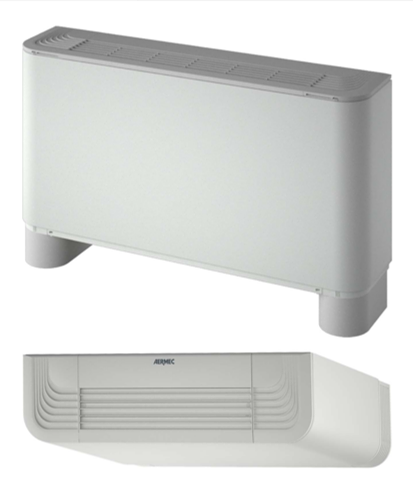

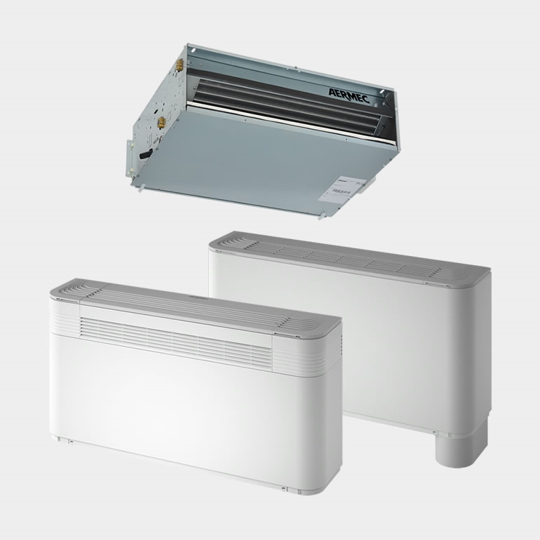

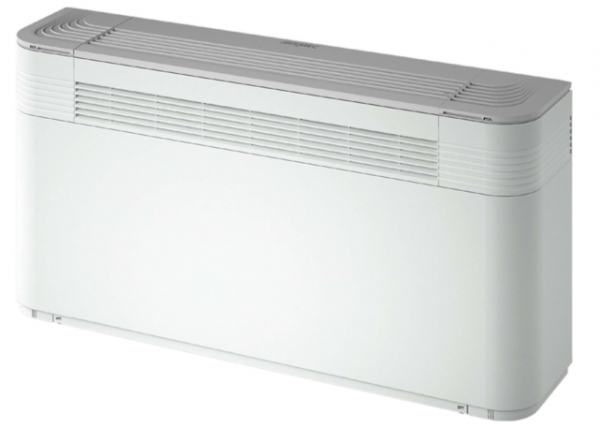

FCZI / FCZI-D / FCZI-P: The inverter modulation fan coil available in numerous configurations for every installation need: Wall, Ceiling, Recessed, for either hanging installation or in formwork or ducted installation. A dualjet version is also available.

Cooling Capacity: 1.60 – 6.37 kW

Heating Capacity: 3.70 – 15.52 kW

Installation: Floor / Wall / Ceiling

Type: 2 Pipes / 4 Pipes

Fan: Double suction centrifugal fan

Optional: Network Operation / VMF System

The fan coils of the FCZI/FCZI-D/FCZI-P series are suitable for comfort air conditioning. These machines, with their revamped design, are available in various set-ups depending on the installation position, with the possibility of being ducted as well. They feature brushless inverter motors coupled with ABS fans with an impeller equipped with inspectionable airfoil and scroll fins. This feature gives the machine a net reduction in the noise emission level, as well as a reduction in the motor's electrical consumption compared to traditional fans with a metal structure. The unit has a coil with 3 or 4 rows and can have a secondary 1 or 2 row coil for four-pipe system configurations. T-touch thermostat, available as an accessory, equipped with NFC technology to control the fan coil with a smartphone. FCZI units are compatible with the VMF management system.

fczi_fczi-d_fczi-p-tds1.pdf
fczi_fczi-d_fczi-p-tm1.pdf
