VES

VES

Product Code: CRH-FCU-VES

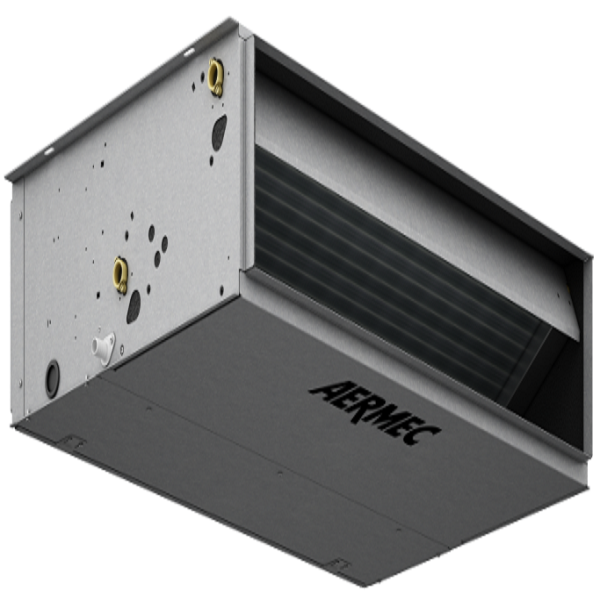

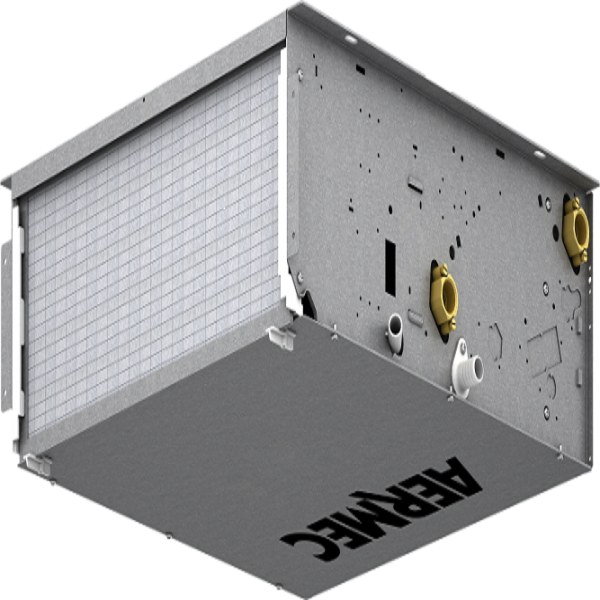

Ducted fan coil, for heating, cooling and dehumidifying, specific to work in
sensible environment. The fan unit at available working pressures, trought internal insulation, ensure excellent acoustic comfort levels. The small dimensions and easy installation make the fan coil designed for 2 and 4-pipe applications. The main coil, reversible during installation, is designed to ensure a high heat transfer, ideal for applications in sensible environment.

Cooling Capacity: 1.82 – 11.81 kW

Heating Capacity: 1.25 – 25.37 kW

Installation: Ducted

Type: 2 Pipes / 4 Pipes

Fan: Double suction centrifugal fan

Optional: Network Operation / VMF System

The units of the VES series are fan coils which are suitable for air conditioning. They come with multi-speed on/off motors. They have anti-static plastic centrifugal fans with an impeller equipped with inspectionable airfoil and scroll fins. This feature gives the machine a net reduction in the noise emission level, as well as a reduction in the motor's electrical consumption compared to traditional fans with a metal structure. The VESI fan coils are ductable units equipped with a fan unit that continuously modulates air flow, for greater comfort and significant energy savings, thanks to the brushless motor with inverter, with wide useful head range.

The units can be installed in 2/4 pipe systems and are available in versions with standard coil or enlarged coil. The fan has an aerofoil profile that guarantees high performance and low noise emission. The VES units are compatible with the VMF management system.

ves_vesi-tds.pdf
ves_vesi-tm.pdf
